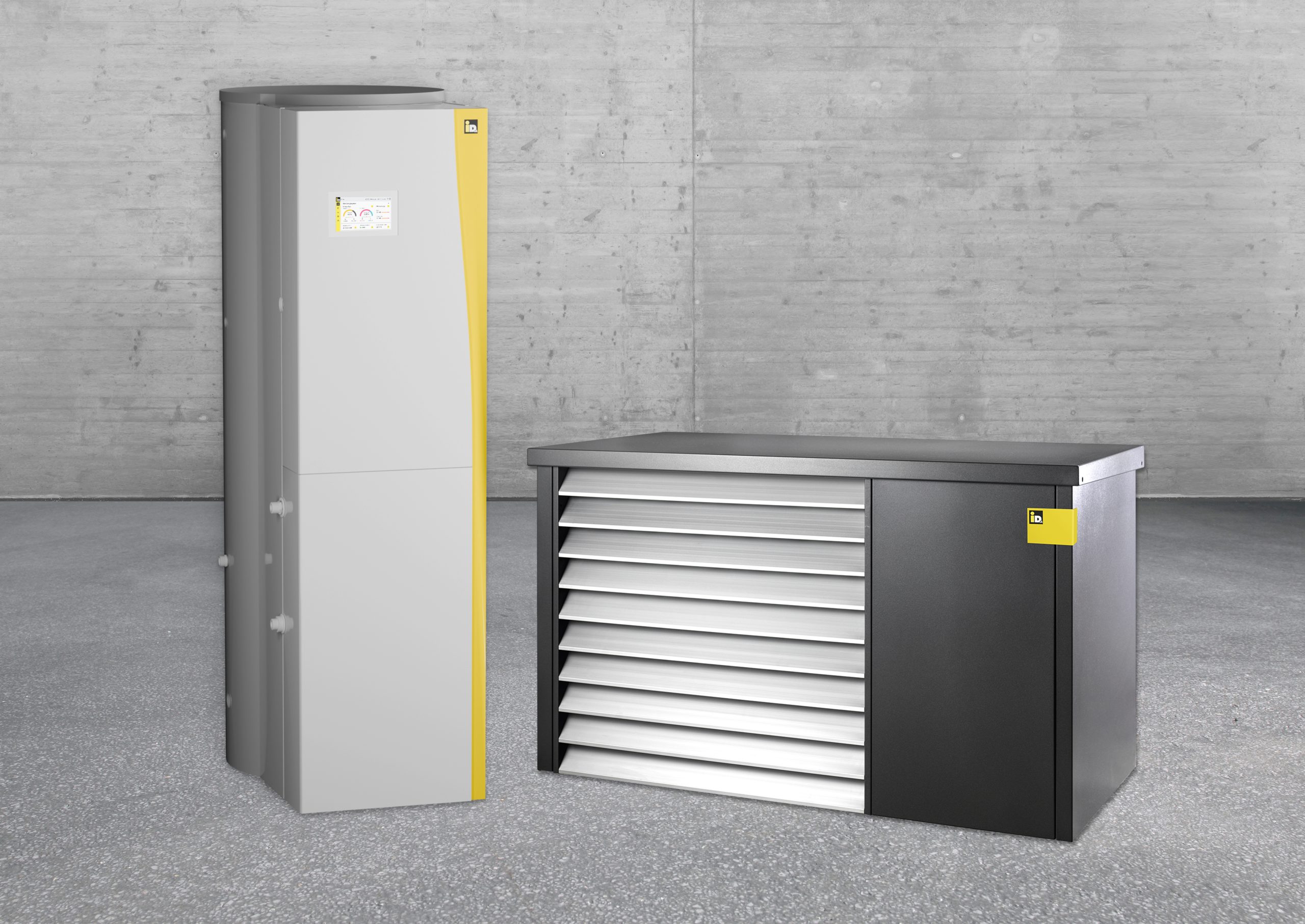

The iDM iPUMP A12 ONE with integrated domestic hot water tank is the perfect solution for heating, domestic hot water preparation, and – thanks to standard active cooling – also for a temperate home on hot summer days. In power range of 4-12 kW , it operates extremely efficiently and protects not only the environment but also your wallet. The unit is not only compact in terms of space requirements but it is also precisely tailored to the heating requirements of a household. Its powerful yet quiet operation ensures the best possible comfort at home, while the robust outdoor unit made of high-quality aluminium is designed to withstand all weather conditions. The heart of the iPUMP A12 ONE is the intelligent iDM NAVIGATOR control, which enables easy connection to PV and power storage systems.
Compact unit with integrated storage tank
Maximum storage capacity – 320 l domestic hot water tank (including 25 L coil) and integrated 100 l buffer storage tank
High flow temperature of up to 70°C makes the unit ideal for renovations with radiators
High SCOP 35°C: 5.15 (iPUMP A12 ONE) for low energy consumption
Natural refrigerant R290
Easy installation thanks to sophisticated design (Modular – can be configured in four components)
Integrated 6 kW heating element
Durable outdoor unit made of high-quality aluminium: withstands wind and weather
Intelligent iDM NAVIGATOR control – the intelligent heart of our highly efficient systems
Technical specifications
- Energy efficiency class: Heating A+++/A+++
- Hot water A
- Heating capacity at A2°C/W35°C [kW]: 4.07 – 11.80
- Cooling capacity at A35°C/W18°C [kW]: 5.11 – 14.00
