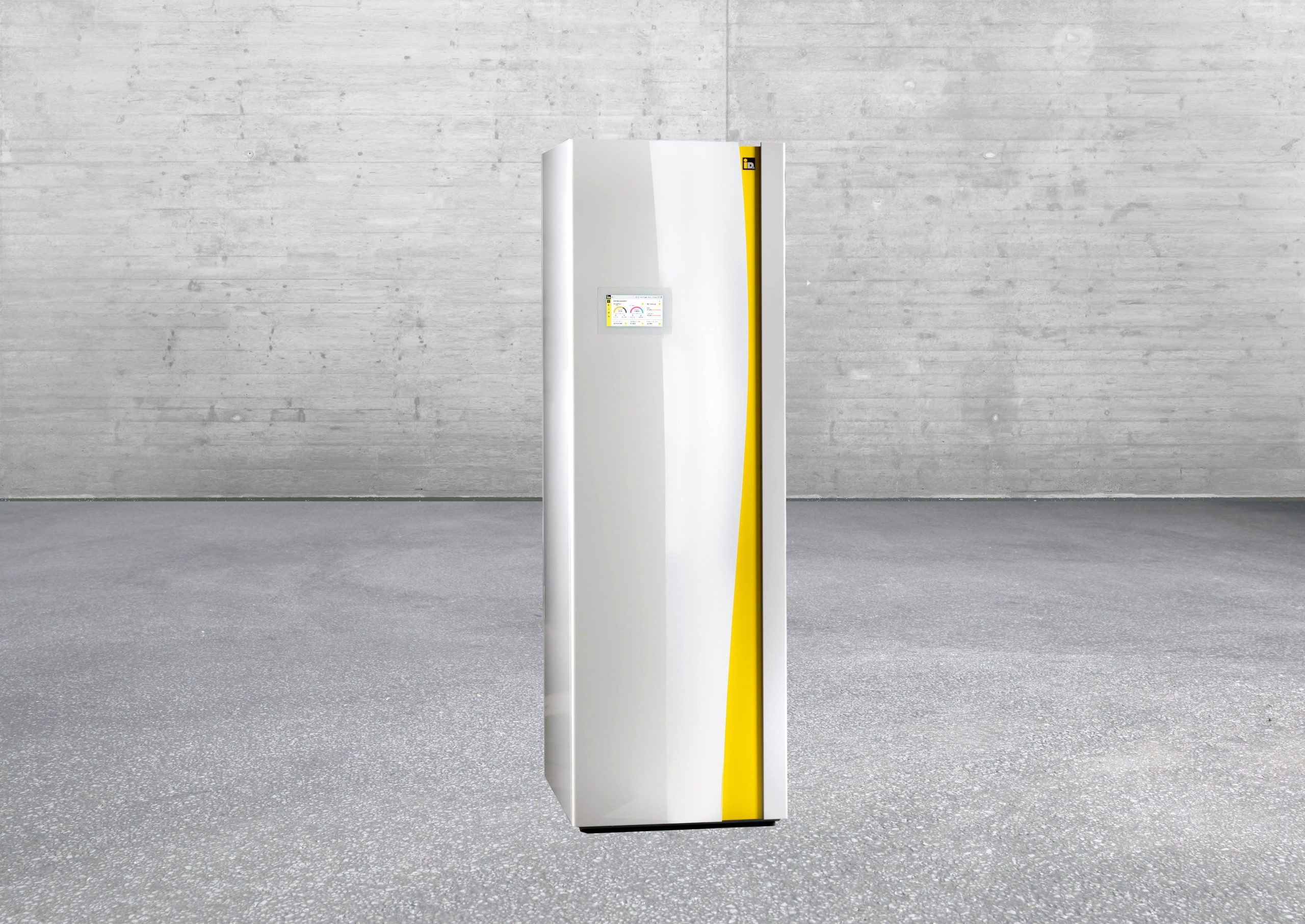

The iDM iPUMP T7 ONE with integrated domestic hot water tank combines maximum efficiency with a space-saving design, making it the ideal heat pump for single-family homes – both in new buildings and renovations. With flexible heating capacity of 2-7 kW it is the perfect solution for heating, domestic hot water preparation, and – thanks to passive cooling – also for temperate rooms on hot summer days. Regardless of whether groundwater or geothermal energy is used as a source, the iPUMP T7 ONE uses the environmentally-friendly refrigerant R290, achieves flow temperatures of up to 70 °C, and is therefore also perfectly suited for renovations with existing radiators. Quiet operation and integrated 6 kW heating element ensure additional comfort and a reliable heat supply.
Compact unit with integrated 192 liter domestic hot water tank – requires little space and fits even in the smallest of installation spaces
High SCOP 35°C: 4.85 for low energy consumption
Keeps your yard untouched thanks to space-saving indoor installation
High flow temperature of up to 70°C makes the unit ideal for renovations with radiators
Easy installation thanks to splittable design (can be split into four components)
Natural refrigerant R290
Integrated heating element – with flexible power from 1 to 6 kW (can be switched on in 1 kW increments)
Passive cooling included as standard
Intelligent iDM NAVIGATOR control – the intelligent heart of our highly efficient systems
Technical specifications
- Energy efficiency class: Heating A+++/A+++
- Hot water A
- Heating capacity at S0°C/W35°C [kW]: 2.02 – 6.67
- Heating capacity at W10°C/W35°C [kW]: 2.01 – 8.80
- Cooling capacity at S15°C/W18°C (passive cooling) [kW]: 6.00
